Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|
8333 | 2136.10 | PowerPad® III Model 8333 (No Probes) | $3,995.00 | In stock at factory. Find a Distributor |
|

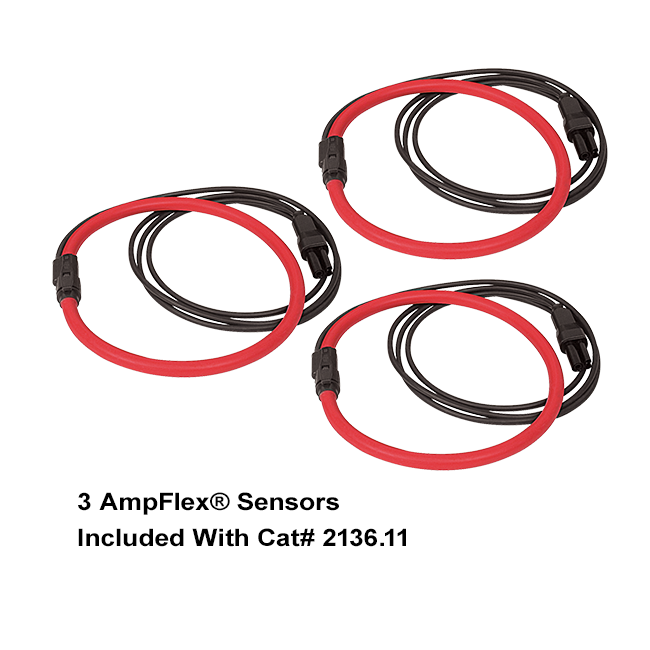

8333 Kit w/3 193-24-BK AmpFlex Sensors | 2136.11 | PowerPad® III Model 8333 w/3 193-24-BK AmpFlex® Sensors | $4,980.00 | Consult Factory for Availability |
|

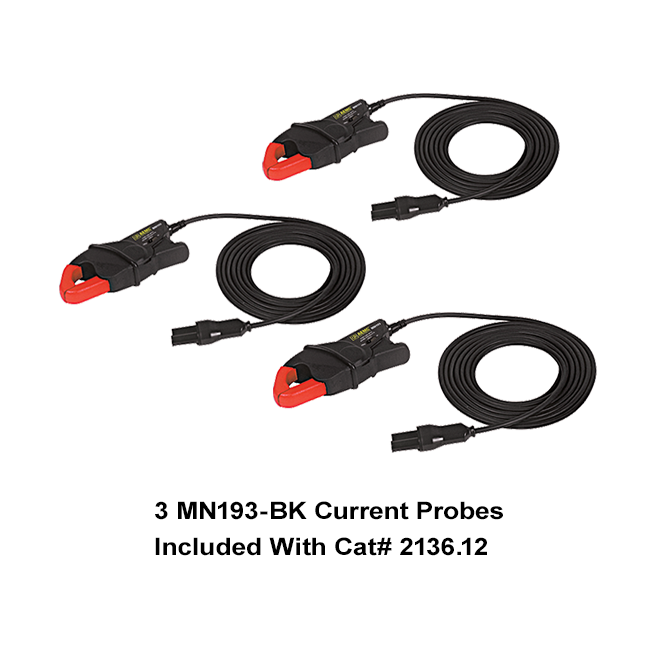

8333 Kit w/3 MN193-BK Probes | 2136.12 | PowerPad® III Model 8333 w/3 MN193-BK Probes | $4,995.00 | Consult Factory for Availability |
|
|
||||||||||
|
||||||||||
|
Model 8333 - Cat. #2136.10: Includes carrying bag, soft carrying pouch, (4) black 10 ft voltage leads, (4) black alligator clips, (12) color-coded input ID markers, NiMH battery, 110/240V power adapter with US power cord, and USB thumb drive supplied with and DataView® software and a user manual.
Model 8333 Kit - Cat. #2136.11: Includes carrying bag, soft carrying pouch, (3) 193-24-BK AmpFlex®, (4) black 10 ft voltage leads, (4) black alligator clips, (12) color-coded input ID markers, NiMH battery, 110/240V power adapter with US power cord, and a USB thumb drive with DataView® software and a user manual.
Model 8333 Kit - Cat. #2136.12: Includes carrying bag, soft carrying pouch, (3) MN193-BK Probes, (4) black 10 ft voltage leads, (4) black alligator clips, (12) color-coded input ID markers, NiMH battery, 110/240V power adapter with US power cord, and USB thumb drive with DataView® software and a user manual.

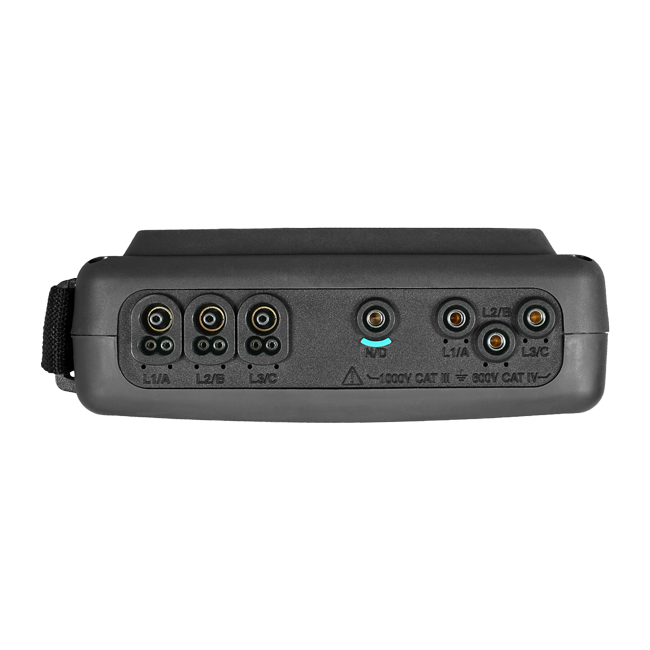

Inputs | 3 Voltage / 3 Current | ||||
Sample Rate | 256 per Cycle | 12.8 kHz at 50 Hz | 15.36 kHz at 60 Hz | ||
Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
Volt | |||||
Vrms (AC + DC) | 1000 V P to N 2000 V P to P |
(2 to 1000) V | 0.1 V | ±0.5 % Rdg + 200 mV | |
Vpk | 1414 V | (2 to 1000) V | 0.1 V | ±3 % Rdg + 2 V | |
Vrms Half Cycle | 100 0V P to N 2000 V P to P |
(2 to 1000) V | 0.1 V | ±0.8 % Rdg + 1 V | |
Amps (accuracy excluding clamp accuracy) | |||||
Amps (AC + DC) | SR193 & MR193 MN193 5A MN193 100A |
(1 to 1000) A 5 mA to 5 A 100 mA to 100 A |
0.1 A 1 mA 10 mA |
±0.5 % Rdg + 200 mA ±0.5 % Rdg + 2 mA ±0.5 % Rdg + 20 mA |
|
AmpFlex & MiniFlex | Range 100A Range 6500A Range 10kA |
100 mA to 100 A (10 to 6500) A 10 A to 10 kA |
1 mA 0.1 A & 1 A 1 A |
±0.5 % Rdg + 30 mA ±0.5 % Rdg + 3 A ±0.5 % Rdg + 3 A |
|
Apk | SR193 & MR193 MN193 5A MN193 100A |
(1 to 1,414) A 5 mA to 7.017 A 100 mA to 141.4 A |
0.1 A 1 mA 10 mA |
±1 % Rdg + 2 A ±1 % Rdg + 20 mA ±1 % Rdg + 200 mA |
|
Apk AmpFlex & MiniFlex |
Range 100 A Range 6500 A Range 10 kA |
100 mA to 100 A (10 to 6500) A 10 A to 10 kA |
1 A 0.1 A & 1 A 1 A |
±3 % Rdg + 600mA ±3 % Rdg + 5A ±3 % Rdg + 5A |
|
A Half Cycle | SR193 &MR193 MN193 5A MN93 100A |
(1 to 1200) A 5 mA to 6 A 100 mA to 120 A |
0.1 A 1 mA 10 mA |
±1 % Rdg + 1 A ±1 % Rdg + 10 mA ±1 % Rdg + 100 mA |
|
Frequency | (40 to 70) Hz | 0.01 | ±0.01 Hz | ||
Power | |||||
Watts (VA, var) P-Q-S |
Probes: AmpFlex, MiniFlex |
10 mW to 10 MW 10 mW to 10 MW |
4 digits min 4 digits min |
±1 % Rdg ±1.5 % Rdg |
|
Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±1 ° for Φ, +5 cts for cos Φ |
||
Energy | |||||
kWh (kVAh, kvarh) P-Q-S | 1mWh to 9,999,999MWh (MVAh, Mvarh) | ±1% Rdg | |||
Harmonics | DC, 1 to 50 | ||||
Volts & Amp % | f r Absolute V Absolute A THD |
0.0 to 1500% 0.0 to 100% 0.0 to 1000V 0.0 to 1000A 0.0 to 999.9% |
0.1% 0.1% 0.1V 0.1A 0.1% |
±2.5% Rdg + 5cts ±2.5% Rdg + 5cts ±2.5% Rdg + 1V ±2% Rdg + 1A ±2.5% Rdg + 5cts |
|
Phase Angle | -179° to +180° | 1° | ±1.5° +1°x(n/12.5) | ||
Also display Energy loss, Flicker, Plt (2H), Pst (10min), Unbalance V% & A% | |||||
General Features | |||||
Programmable Alarm | Up to 10 types; 4000 recorded max. | ||||
Transient capture | Up to 51 | ||||
Snapshot | Up to 12 (screen BMP + all channels data) | ||||
Interface | Isolated USB, SD card slot accessible under instrument battery for direct transfer to PC, Dataview software for real time data, configuration and reporting included | ||||
Memory | SD card (SDHC compliant, not formatted) standard, for trend Data, Internal memory for In-Rush, transients and alarms | ||||
Display | Color TFT 320 x 240 (1/4 VGA) with graphic representation of system parameters and measurements | ||||
Real-Time Clock | Time and date stamp for Trend mode, Transient display, System Monitor and event capture | ||||
Power Supply | Rechargeable 9.6 V NiMH battery pack, External charger | ||||
Charging Time | (90 to 264) VAC (50/60 Hz) | 6 hours approx. | |||
Battery Life | >13 hrs when display ON, 25 hrs when recording with display OFF | ||||
Dimensions (L x W x H) | (9.8 x 7.9 x 2.6) in (250 x 200 x 67) mm | ||||
Weight | 4.3 lbs. (1.95 kg) | ||||
Altitude Operating | 2000 m (6560 ft) | ||||
Operating Temperature | (32 to 108.5) °F (0 to 42.5) °C ≤ 85 % RH | ||||
Storage Temperature | (-4 to 158)°F (-20 to 70) °C ≤ 75 % RH without battery | ||||
IP Rating | IP53 per IEC 60529 | ||||
Safety | IEC/EN 61010-1 (1000 V CAT III-600 V CAT IV), IEC 1326-1 |
User Manuals
Model 8333
Model 8333 - Español (CA France version)
Model 8333 - French (CA France version)
Battery Recharge Time / Rechargeable NiMH Notice
Quick Start Guides
Datasheets
Brochures
Comparison Charts
Power Analyzer - Current Probe Selection Chart
Power Quality Analyzer Comparison Chart - English
Power Quality Analyzer Comparison Chart - Español
Power Quality Analyzers and Loggers Sensor Compatibility
Software
PowerPad III Control Panel
Version 1.08.16142 | Release Date: November 04, 2024
▶ PAT2 (PowerPad III) Software Version 1.08.16142 .exe format
DataView® Software
Ver. 3.63.0010 | Models Supported by DataView
Release Date: November 04, 2024
DataView® Complete
Contains report generation and ALL DataView® control panels. If you don't want to download the entire DataView® package, simple scroll below to locate individual component installers.Self-extracting Executable: v3.63.0010 .exe — We recommend you use the executable file to simplify the installation process. Click on the link to download it, double-click on the downloaded .exe file to begin the installation process, and follow the installation prompts.
Zipped File: v3.63.0010 (1.8 MB). zip — Alternatively you can manually extract the files from the zipped file. Please note: you should NEVER install these files from within the zipped file. You MUST extract them prior to installing.
IMPORTANT:
- Back-up all template files before installation to ensure that they do not get overwritten.
- Uninstall previous version of DataView before installing a new version.
- PQL Loggers and Sentinel Series are no longer supported by DataView. See bottom of the page for a compatible version
Supported Operating Systems:
Windows 10 (32 & 64 Bit)
Widows 11 Pro
Minimum System Requirements
Below are the individual DataView component installers
This is the DataView core report generation software without any control panels
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 1110, 1246, 1227, 1510, 1550, 1821, 1822, 1823, L452, DL913, and DL914
Download v2.02.0303 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports model 8510
Download v1.02.0006 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports model 6417
Download v1.02.0011 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 6470, 6470-B, 6471, 6472, and 6474
Download v1.06.0009 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 6116, 6116N, and 6117
Download v1.07.0022 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 1060, 5060, 5070, 6550, 6555, 6526, 6532, and 6534
Download v4.02.0086 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 6240, 6250, 6255, and 6292
Download v1.07.0005 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 8220, 8230, 3945, 3945-B, 407, 607, and 8335 (if using firmware ≤2.8)
38MB Download v3.08.0019 .zip format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 8333, 8335 (if using firmware >2.8), 8336, 8435, 8436
Download v1.08.16142 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: 8345
Download v1.4.15803 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: PEL 52, PEL 102, PEL 103, and PEL 105
Download v2.09.16216 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
This control panel supports models: L261, L264, CL601, L702, L101, L102, L104, L642, L111, L432, AL834, ML912, ML914, L322, L562, L564, L404, and L481
Download v1.05.0014 .exe format
This control panel requires DataView version 3.61.0008 or higher to access reports.
NOTE: You must install DataView® core prior to installing and using a DataView® Control Panel.
NOTE: PQL Loggers and Sentinel Series are no longer supported by DataView.
To obtain an older version of DataView that is compatible for these instruments, click the link below:
Download v3.09.0008 - .zip format
Supported Operating Systems:
Windows 8/8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)
LabView Drivers
Procedures for installing the LabView drivers. LabView Installation PDF
Digital Multimeters - MTX-3292B, MTX3292BT, MTX3293B, MTX3293-BT | |||
Ver. 1.0 | LabView Drivers | ||
Megohmmeters | |||
Ver. 1.0 | Model 1060 | Overview PDF | |
Ver. 1.1 | Models 5060 & 5070 | Overview PDF | |
Ver. 1.0 | Models 6550 & 6555 | Overview PDF | |
Power Quality & Energy | |||
Ver. 1.0 | Models 8333, 8435, 8335, & 8336 | Overview PDF | |
Ver. 1.0 | Models PEL 102 & 103 | Overview PDF | |
Simple Logger II Series | |||
Ver. 1.0 |
Overview PDF | ||
SCOPIX IV – OX9000 Series | |||
Ver. 1.0 Ver. 1.0 |
Application Notes
Tiempo de recarga de las baterías / Aviso de NiMH recargable
Glossary of Power Terms
Tutorial - Using DataView Software with the PowerPad III
Setting Up a Recording Session in the DataView PowerPad III Control Panel
Read SD Card Feature for PowerPad® III Instruments
EN 50160 Power Quality Monitoring with the DataView® PowerPad® III Control Panel
Exporting Data to a Spreadsheet or PDF
PowerPad III Data Download
Harmonics: A Brief Introduction
True RMS, True InRush®, and True Megohmmeter®
PowerPad III® vs PEL® Feature Comparison
Data Aggregation in PowerPad III® and PEL® Instruments
Glosario de Términos Eléctricos
White Papers
Forms
Stored Measurement Results Form
High Voltage Warning Sign (color)
High Voltage Warning Sign (black & white)
Calculators
Firmware
Technical Bulletins
Watts Current Issue 18
Watts Current Issue 17
Watts Current Issue 16
Watts Current Issue 12
Watts Current Issue 10
Watts Current Issue 09
Watts Current Issue 07
Watts Current Issue 05
Watts Current Issue 03
Watts Current Issue 02
Videos
Read SD Card Feature in the DataView® PowerPad III Control Panel
Model 8333 & Model 3945-B Comparison
EN 50160 Monitoring with PowerPad® III (Models 8333, 8336, 8435)
What's New in DataView 3.50
Introduction To Data Loggers
Data Aggregation for PEL® and PowerPad®
Model | Cat. # | Description | List Price | Quantity/Status | Distributor Stock Check |
---|---|---|---|---|---|
SL261 | 1201.51 | AC/DC Current Probe Model SL261 | $494.00 |
|
|
2133.72 | Small Classic Tool Bag for field use. 12 Exterior and 14 Interior pockets. Dimensions: (13.0 x 9.8 x 9.5) in. For use with PEL Models: PEL 102 and PEL 103, DMM/Oscilloscope/Power Analyzer Model: OX 5042B, Megohmmeters Models: 5050, 5060, 5070 & 6505, 6550 & 6555.Data Loggers Models: DL913 & DL 914. |
$36.00 |
|
|
|
2133.73 | Extra Large Classic Tool Bag Replacement for Models: 3945/3945-B, 6240, 6255, 6292, 6471, 6505, 5050, 5060, 5070, 8333, 8335, 8336, 8435, 8436, 8510 & PEL105 Dimensions: (18 x 9 x 12) in |
$53.00 |
|
|
|
2136.80 | Cable – 10 ft USB Type A to Type B for use with Models 8333, 8335, 8336, 8435, 8436, PEL 102, PEL 103, PEL 105 (Replacement for Models DTR® 8510, C.A6116, DL913, DL914, 5060, and 5070) | $19.00 |
|
|
|
2140.15 | Pouch – Replacement, Soft Carrying Pouch for Models 3945/3945-B, 8333, 8335 & 8336 | $45.00 |
|
|
|
2140.19 | 9.6V NiMH (color may vary) for Model 3945/3945-B, 8333, 8335, 8336, 8435, 8436, OX Oscilloscopes, C.A 6116, 6550 and 6555 (Note that 2 batteries are required for the 6550 and 6555) | $231.00 |
|
|
|
MR193-BK | 2140.28 | AC/DC Current Probe Model MR193-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435 & PEL Series | $489.00 |
|
|
MN93-BK | 2140.32 | AC Current Probe Model MN93-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $240.00 |
|
|
SR193-BK | 2140.33 | AC Current Probe Model SR193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $409.00 |
|
|
193-24-BK |
2140.34 | AmpFlex® Sensor 24" Model 193-24-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $320.00 |
|
|
193-36-BK |
2140.35 | AmpFlex® Sensor 36" Model 193-36-BK for use with Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $370.00 |
|
|
MN193-BK | 2140.36 | AC Current Probe Model MN193-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, PEL Series, L104 & L564 | $329.00 |
|
|
2140.40 | Adapter - BNC Adapter for use with AC/DC Current Probe Model SL261, 8220, 8333, 8335, 8336 & 8436 | $145.00 |
|
|
|
2140.43 | Set of 5, Black 10 ft (3M) with (5) Black Alligator Clips, Replacement for Models 8333, 8335, 8336 & 8345 {Leads rated 1000 V CAT IV 10 A, Clips rated 1000 V CAT IV 15 A, UL} | $128.00 |
|
|
|
2140.45 | Replacement - Set of 12, color input ID markers for the PowerPad Series | $36.00 |
|
|
|
MA193-10-BK | 2140.48 | MiniFlex® Sensor 10" Model MA193-10-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $275.00 |
|
|
2140.50 | 2140.50 | MiniFlex® Sensor 14" Model MA193-14-BK for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $299.00 |
|
|
2140.61 | Lead - Set of 4, Color-coded 30 ft (10m) (red, black, blue & white) {Rated 600V CAT IV, 10A} Replacement set for Cat. #2140.23 |
$119.00 Sale: $59.50 |
|
|
|
2140.73 | Lead - One 10 ft (3M) Black Lead (Waterproof cap) {Rated 1000V CAT IV} & One Black Alligator Clip {Rated 1000V CAT IV, 15A, UL} for Models 8435 & 8436 | $36.00 |
|
|
|
2140.77 | Adapter - Phase Power Adapter for use with PowerPad Models 8333 & 8336 User Manual |
$469.00 |
|
|
|
MA194-24-BK | 2140.80 | MiniFlex® Sensor Model MA194-24-BK (Replaces Cat. #2140.78) for Models 3945/3945-B, 8220, 8230, 8333, 8335, 8336, 8345, 8435, 8436 & PEL Series | $330.00 | Consult Factory for Availability |
|
5000.14 | Power cord 115V for Micro-ohmmeters, Megohmmeters, Power Instruments, Oscilloscopes & Ground Testers | $10.00 |
|
||
5000.19 | Power adapter (replacement) 110/230V with US power cord for use with models 8333, 8335, 8336, PEL 105, and C.A 6116 | $205.00 | Consult Factory for Availability | ||
5000.43 | Probe - set of 2, color-coded (red/black) magnetized voltage probes (Rated 600V CAT IV, 1000V CAT III) for models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and PEL series (or any lead that accepts a 4mm safety banana plug) | $36.75 |
|
||
5000.77 | Cable reeling box for organizing leads less than 10 ft Instruction Sheet |
$19.70 |
|
||
2140.46 | Cable - 5 ft USB cable for Model 6290, 6292, 8333, 8335, 8336, 8345, 8435, 8436, C.A 6116, C.A 1727 and PEL Series (DISCONTINUED replaced by 2136.80 ) | $0.00 | Discontinued |
|
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
||||||||||
|
